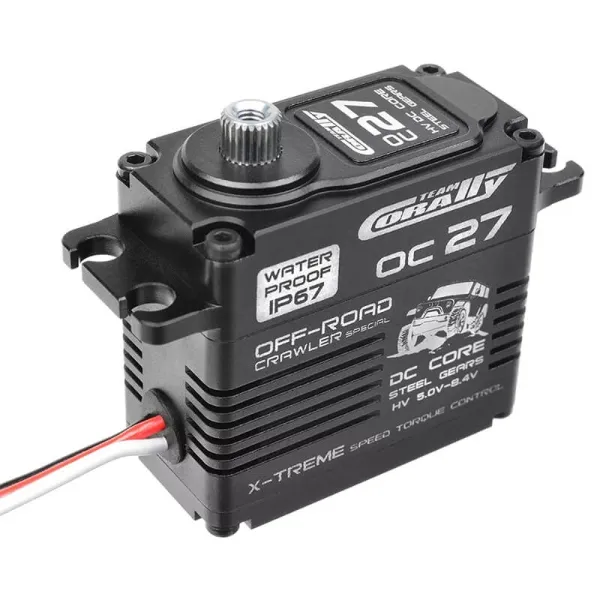

Corally - OC27 HV digital servo 5-8.4v IP67 Steel gear alloy C-52015

CORALLY OC27 HV DIGITAL SERVO 5-8.4V IP67 STEEL GEAR ALLOY C

Are you looking for some powerful control!

We have developed these servos with the basher in mind, ultimate digital power, precision and reliability.

Features

• Full CNC machined alloy case
• Digital LHV 5.0 - 8.4V
• Metal gears
• Ball Raced
• Core DC motor
• High speed and torque
• IP67 Waterproof

Specifications

Speed 60°/Sec @ 6.0V: 0,15

Speed 60°/Sec @ 7.4V: 0,13

Speed 60°/Sec @ 8.4V: 0,11

Torque kg/cm @ 6.0V: 17,7

Torque kg/cm @ 7.4V: 23,6

Torque kg/cm @ 8.4V: 27,3

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40

Width (mm): 20

Height (mm): 37

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: DC Core Motor

Servo Protection: Waterproof IP67

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium Case

Connector: JR Universal + Coloured Lead
