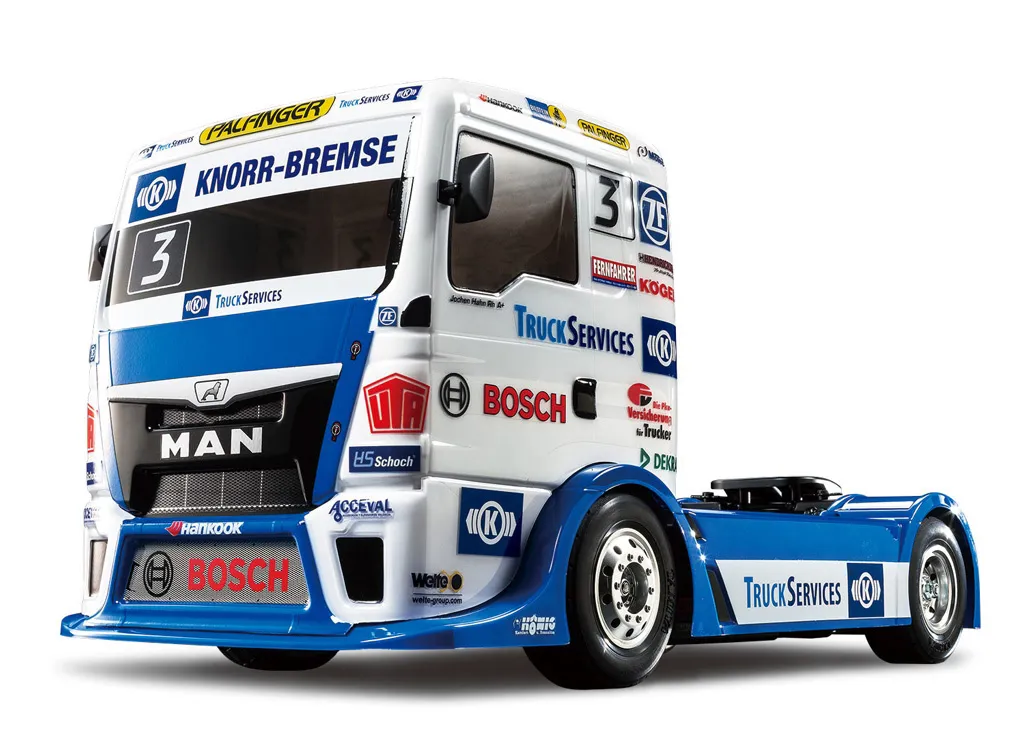

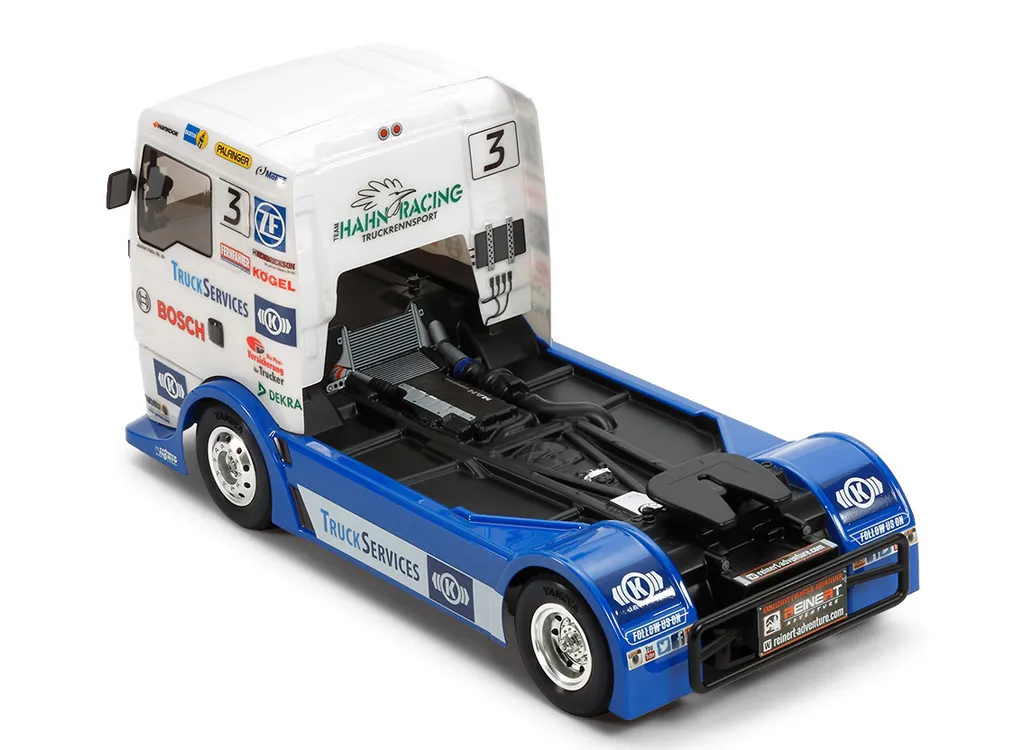

This is an exciting R/C model assembly kit recreating the Team Hahn Racing MAN TGS truck which stars on the truck racing circuit in Europe. The realistic body is a 4-piece set made from lightweight and durable polycarbonate, with separately moulded plastic side mirrors, coupler and rear bumper parts. The TT-01 Type-E chassis is a proven performer, and here is fitted with dedicated new wheels and tyres for the model.

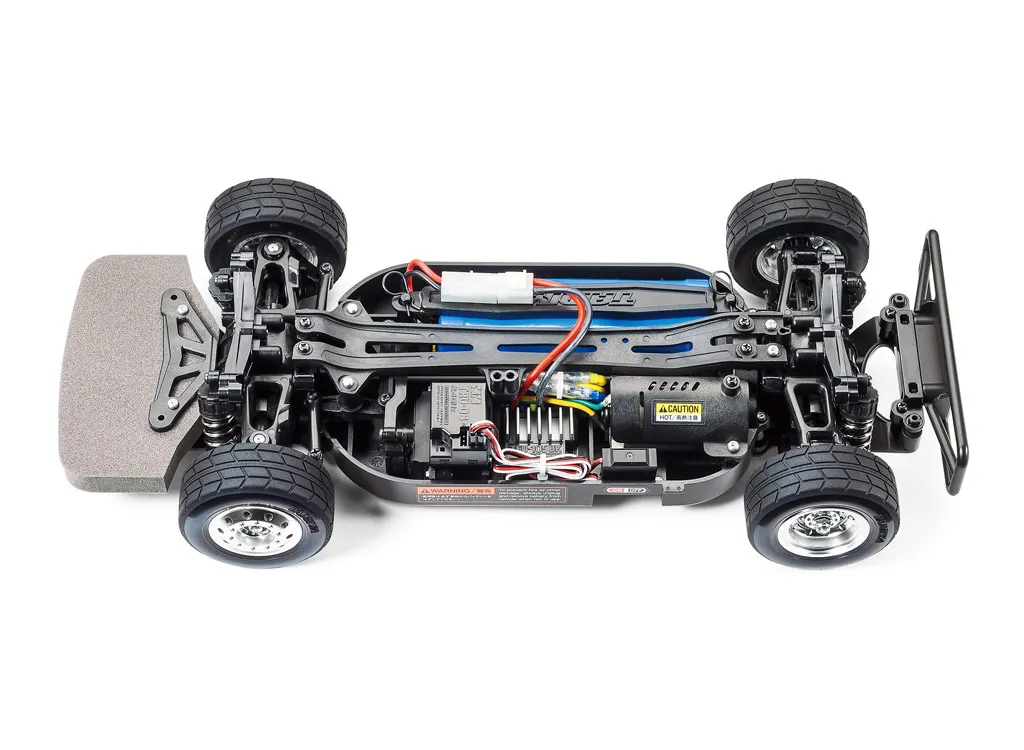

TT-01 Type-E Chassis

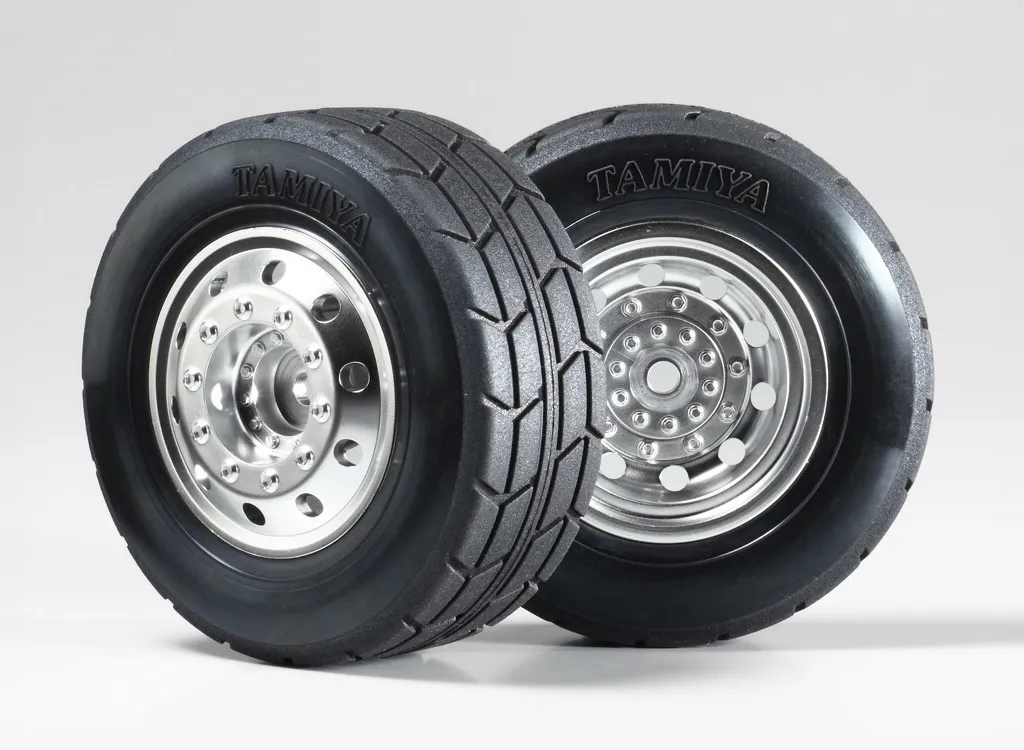

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower centre of gravity and optimum balance. Mounted on the bathtub frame is a fibreglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing a smoother steering action. The low centre of gravity, great balanced design, 4 wheel double wishbone suspension system, and front and rear differential gears all come together to produce excellent operating ability. 70mm-diameter radial tyres are paired with metal plated wheels developed just for this model; the high sidewalls make for forgiving turns.
About The Model
- Scale 1/14. Length: 438mm, Width: 190mm, Height: 207mm
- Wheelbase: 257mm
- Tyre Width/Diameter: 28/70mm
- Bathtub Type Chassis Frame
- Longitudinally-Mounted Motor Shaft-Driven Full-Time 4WD
- F/R 3-Bevel Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- F/R Friction Dampers
- Gear Ratio=8.35:1
- Type 540 Motor
Separately Required Items
- Two-channel radio, electronic speed controller (ESC), steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint
