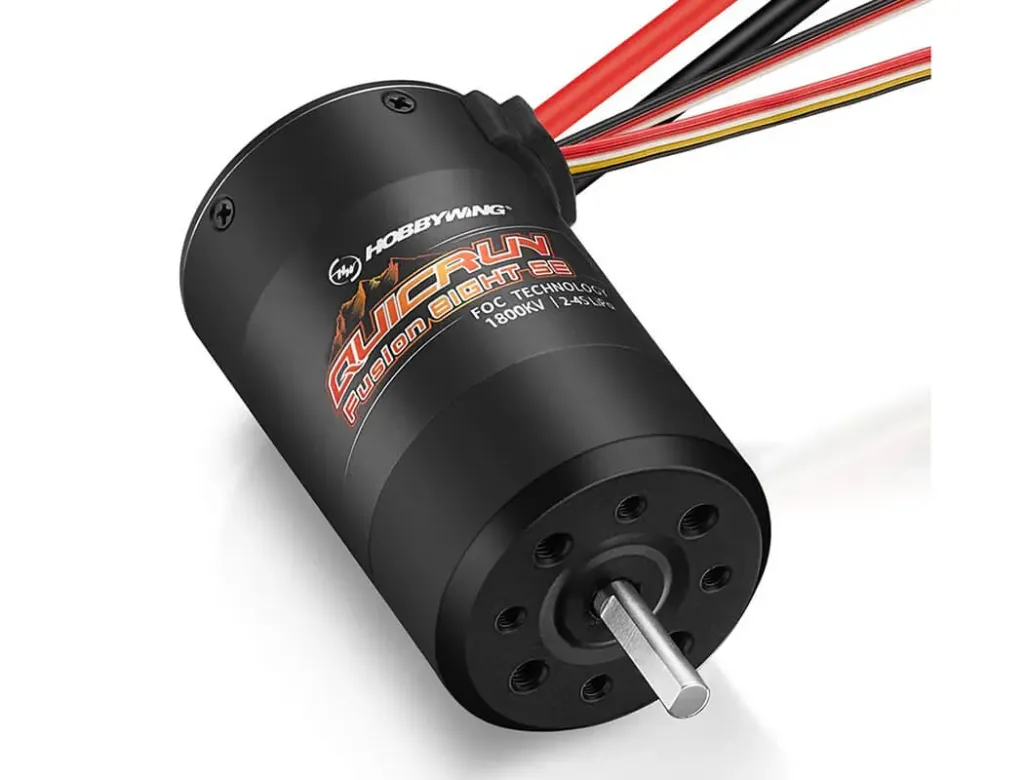

HOBBYWING QUICRUN FUSION 8IGHT SE BRUSHLESS FOR 1/8TH CRAWLER 1800KV

The Hobbywing Quicrun Fusion 8IGHT SE 1800Kv (HW30109100) combines a sensored brushless motor and ESC in one compact unit, simplifying wiring and layout on 1/8th crawler builds. Using FOC (Field Oriented Control), it delivers exceptionally smooth, strong low-speed torque with a quiet, efficient power delivery. Its waterproof and dustproof construction helps keep you moving in varied conditions, while the robust adjustable BEC supports high-torque and high-voltage servos. Parameter changes are straightforward via compatible Hobbywing program boxes.

Features

• Integrated ESC and motor design for a simpler, cleaner installation.
• FOC driving mode provides very strong low-speed torque and refined control, preferred by many over standard brushless and even brushed setups.
• High efficiency with reduced heat for extended run times and quieter operation.
• Excellent waterproof and dustproof performance for use in all conditions.
• Intelligent torque output with speed closed-loop control.
• Active drag brake force adjustment for strong holding power on inclines.
• Built-in switch-mode BEC with 6V/7.4V selectable output to drive high torque/high voltage servos.
• Multiple protection functions: low-voltage, overheat, throttle-loss and lock-up protection.
• Supports Hobbywing LED and LCD Program Box Pro/G2 for convenient ESC parameter setup.

Specifications

• Scale: 1/8th
• Motor Type: Sensored brushless (integrated with ESC)
• Waterproof: Yes
• Continuous / Peak Current: 60A / 200A
• Input Voltage: 2–4S LiPo; 6–12 cells NiMH
• BEC Output: Switch-mode, 6V/7.4V adjustable, 4A continuous
• KV Rating: 1800Kv
• Motor Poles: 4
• Input Wires: Black 13AWG 200mm ×1; Red 13AWG 200mm ×1
• Input Connector: XT60
• Programming: SET button not supported; LED Program Box supported; LCD G2 Program Box/LCD Pro supported; OTA programmer not supported; independent programming port (at switch position)
• Firmware Upgrade: Not supported
• Motor Size: 41mm diameter × 69mm length
• Shaft: 5mm diameter × 18.5mm exposed length
• Weight: 326.5g (including wires and connectors)
• Suggested compatibility: 1/8th crawlers
