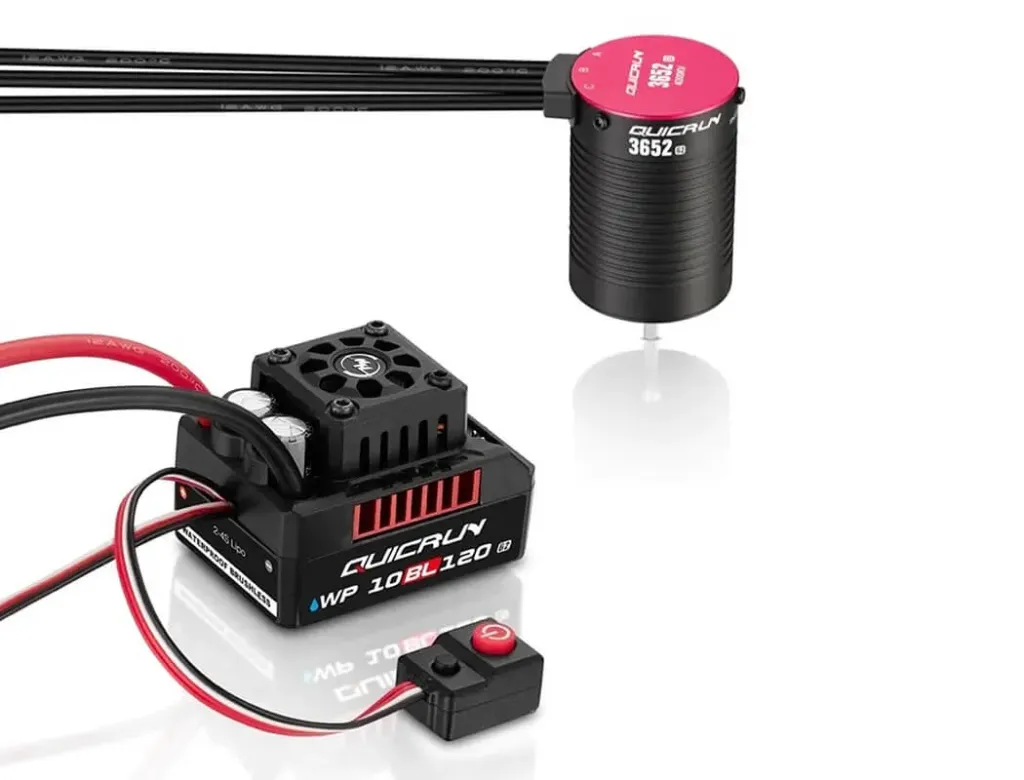

HOBBYWING QUICRUN COMBO ESC G2 WP-10BL120/3652SL 4000KV G2 MOTOR

The Hobbywing Quicrun 10BL120 ESC G2 Combo with 3652SL 4000Kv G2 Motor (part number HW38030208) pairs a waterproof, dustproof speed controller with a 4-pole brushless motor for dependable 1/10 scale performance on 2–3S LiPo. Smart freewheeling technology helps improve driving efficiency and reduce operating temperature, while a powerful adjustable BEC supports standard and high-voltage servos.

Features

• Excellent waterproof and dustproof performance for varied climates and harsh environments.
• Smart freewheeling technology for higher efficiency and lower operating temperatures.
• Built-in switch-mode BEC: continuous up to 5A, burst up to 10A, with 6V/7.4V output selection to drive powerful and high-voltage steering servos.
• Multiple protection functions: low-voltage cut-off, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
• Independent programming port for convenient setup with a program card without unplugging the receiver lead.

Specifications

• KV: 4000KV
• LiPo: 2–3S
• No-load current: 5.3A
• Motor size: φ=36mm (1.42"), L=52mm (2.05")
• Shaft: φ=3.175mm (0.13"), L=15mm (0.59")
• Bearing size (mm): Front D13×D5×T4; Rear D13×D5×T4
• Poles: 4
• Weight: 224g

Suggested Compatibility

• 1/10 on-road
• 1/10 buggy
• 1/10 truck (light load)

Important Warnings

• Ensure the power pairing is suitable for your chassis and components to avoid overloading or damage.
• Secure all wiring; loose connections from vibration can cause loss of control.
• Do not apply full throttle without a pinion fitted; extremely high no-load RPM can damage the motor.
• Do not allow the motor case to exceed 100°C (212°F) to prevent magnet demagnetisation.
