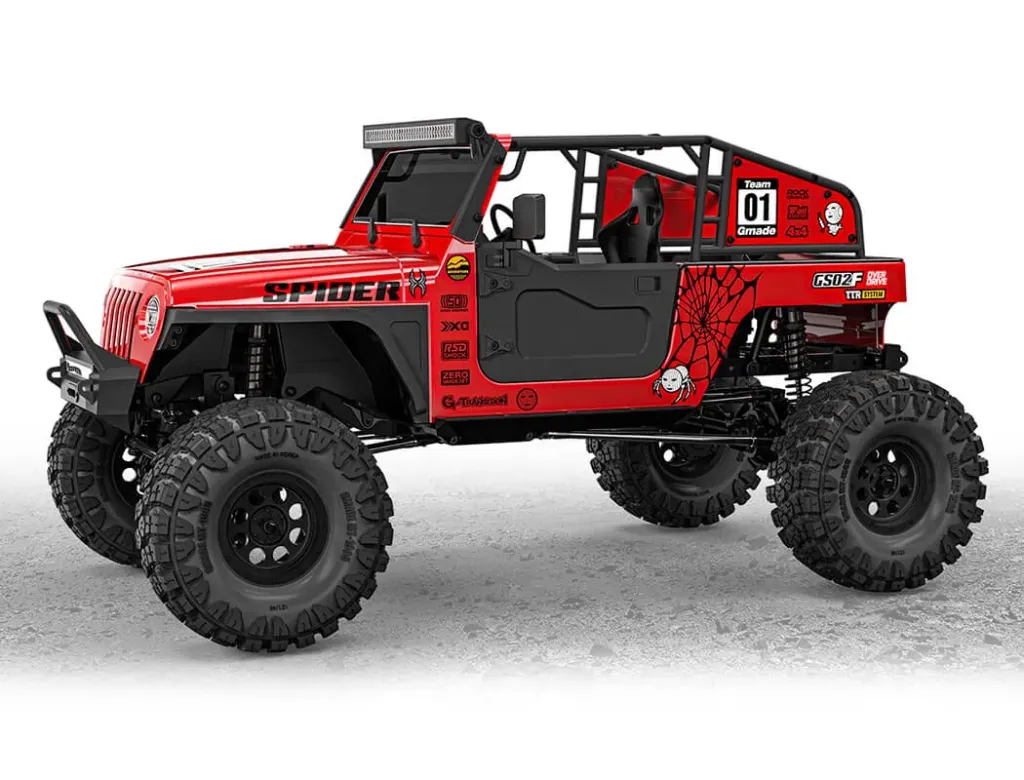

GMADE 1/10 GS02F SPIDER PORTAL TS ASSEMBLY KIT

The GMade GS02F Spider Portal TS Assembly Kit (GM57014) brings a highly capable scale crawler platform with a steel ladder chassis, forward-biased weight balance and portal axles for ground clearance and control. With an extended 347mm wheelbase, overdrive transmission and detailed Spider body, it is engineered for confident performance on rough terrain.

Steel Frame Ladder Chassis

• High-strength steel C-channel rails with bolted cross members resist twisting and warping
• Powder-coated steel parts for corrosion resistance
• Inner fenders mount directly to the frame to reduce flex and block debris
• Multiple battery size tray supports LiPo and NiMH packs
• Front-mounted motor position (540/550 compatible) aids weight distribution; easy pinion access
• Chassis mounted servo with panhard bar minimises bump steer and frees suspension movement

Drive Train and Transmission

• Straight-line drivelines reduce stress and power loss
• Overdrive design turns the front wheels faster for a tighter steering radius and improved climbing
• 2-speed HI/LO transmission: 1st for crawling, 2nd for hill climbs and higher speed running
• TTR (Torque Twist Reduce) transmission uses counter-rotating shafts to enhance stability
• Hardened carbon steel universal joints for smooth, durable power delivery

GA44P Portal Axles and Steering

• Portal axles increase ground clearance and reduce torque reaction
• Tilted differential covers help clear obstacles and reduce impacts
• Optimised kingpin angle improves steering efficiency
• High-steer knuckle arms increase approach angle
• Zero-ackerman steering with CVA delivers a short turning radius and smooth motion

Suspension

• SD scaler oil-filled, coil-over shocks with aluminium bodies and 3.5mm shafts
• Adjustable spring collars for quick ride-height tuning

Wheels and Tyres

• MT-1905 1.9 inch M/T off-road tyres, super soft compound and off-road tread
• Tyre size: Height 121mm; Width 45mm; Inner diameter 48mm (1.9")
• NR03 1.9 inch wheels: Width 23mm; Diameter 48mm (1.9"); 0.5mm positive offset; 12mm hex

Spider Body and Mounting

• "No top" style 1.5mm lexan body with high-strength details
• Includes front grille, light bucket, side mirrors, wipers, driver seat, steering wheel, shifter, overfenders, roll cage and LED light bar
• Accessory parts are high-strength plastic with realistic decals
• Front stealth body mount secures the shell without visible body holes
